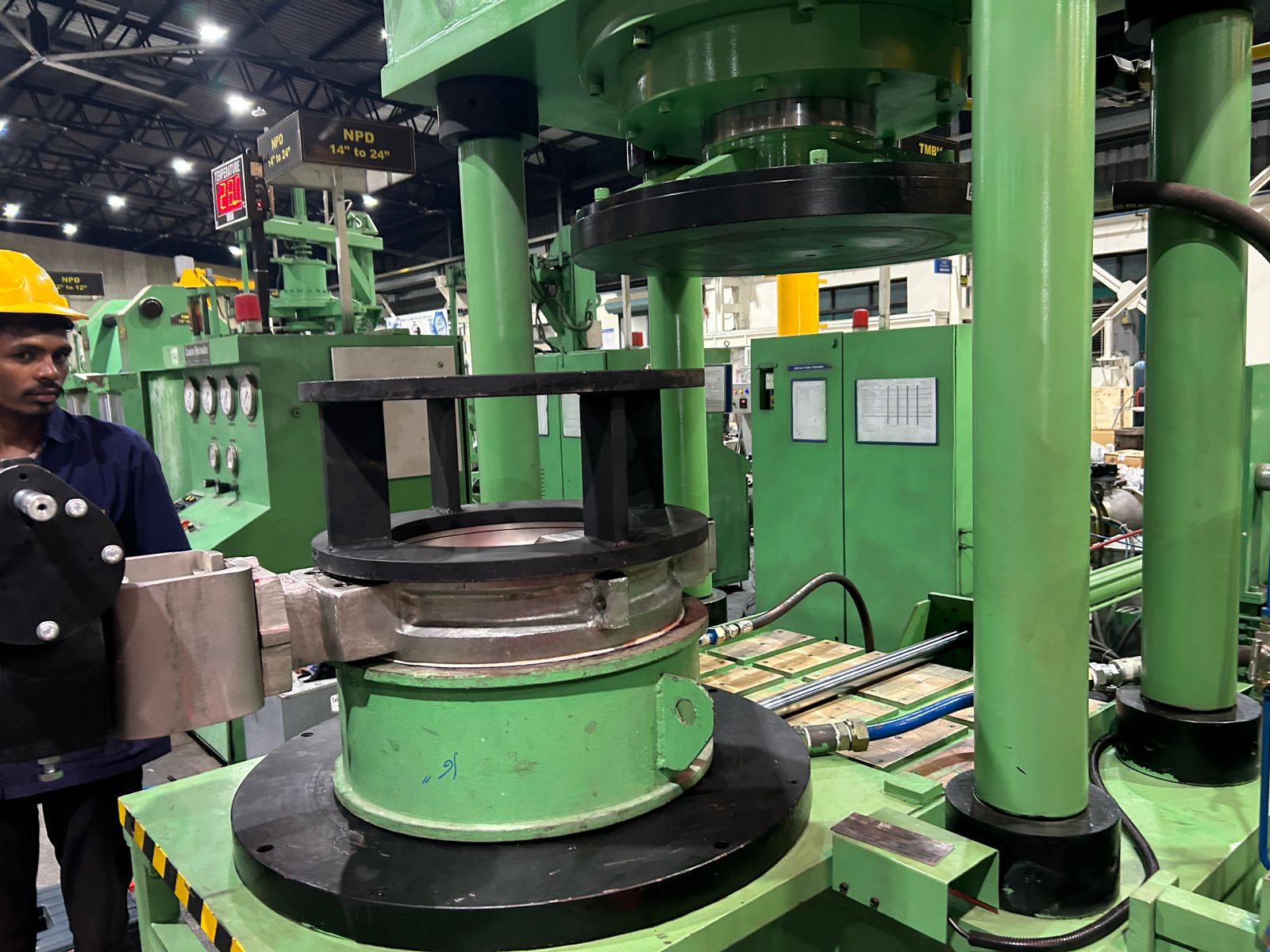

Vertical Test Stand
Vertical hydraulic testing solutions with space-efficient design, ensuring even pressure distribution and optimal testing accuracy.
Vertical hydraulic testing solutions with space-efficient design, ensuring even pressure distribution and optimal testing accuracy.
A Vertical Type Hydro Test Stand is a testing device used to perform hydrostatic pressure tests on cylindrical or tubular components, such as pipes, hoses, valves, or pressure vessels, in a vertical orientation.
Its vertical design ensures even pressure distribution and is space-efficient, making it ideal for facilities with limited space. The vertical positioning is beneficial for space-saving and ensures optimal testing conditions.
Hydrostatic testing is crucial for verifying the integrity, strength, and leak resistance of these components by pressurizing them with water and checking for leaks or deformations.
Designed to hold components upright, ideal for cylinders, valves, and smaller tubular sections with space-saving benefits.
Equipped with high-pressure water pump to pressurize components up to specified test levels.
Pressure gauges, digital displays, and sensors for real-time monitoring of test parameters.
Advanced system to detect and monitor leaks or weaknesses ensuring safety and performance standards.
Integrated pressure relief valves and emergency shut-off switches protecting operators and equipment.
Operators can manage pressure levels, monitor test duration, and ensure compliance with required standards.
Built-in drainage system safely removes water from components after test completion.
| Feature | Specification |
|---|---|
| High-Pressure Testing | Up to 690 BAR |
| Pressure & Flow Control | Precise Control |
| Valve Testing | Multiple Types & Sizes |
| System | Capability |
|---|---|
| Hydraulic Clamping | Secure Testing Conditions |
| Automated Test Control | Real-time Monitoring |
| Leak Detection | Enhanced Safety & Accuracy |
| Feature | Benefit |
|---|---|
| Vertical Orientation | Space-Efficient Design |
| Customizable Design | Tailored Solutions |
Get a customized quote for your vertical test stand requirements
Creative Hydraulics is a leading safety valve test bench manufacturer in India, offering high-performance hydraulic test benches as per international standards which offer accurate and reliable valve test results. These machines are being used by leading manufacturers and are very satisfied with the performance of test bench. Our advanced test benches ensure precise testing of Valves, making them ideal for industrial applications.
Capable of handling up to 690 BAR pressure.
Precise control of pressure and flow - ensuring accurate results.
Supports multiple valve types and sizes.
Ensures firm and secure testing conditions.
Advanced software for real-time monitoring and data logging.
Enhances safety and accuracy during testing operations.
Tailored solutions to meet specific industrial needs.
High-performance test benches as per international standards.
